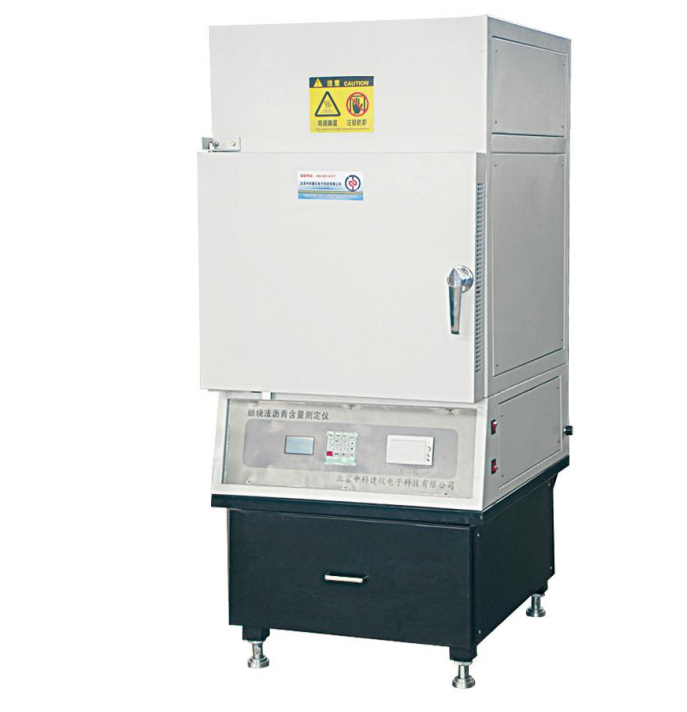

Combustion method asphalt content measuring instrument

Combustion method asphalt content measuring instrument is a professional instrument used to measure the asphalt content in asphalt mixture

Working principle

Put the asphalt mixture of known weight after heating and stirring into the high-temperature combustion chamber for combustion. The organic components in the asphalt will burn and decompose at high temperature to generate gaseous substances such as carbon dioxide and water and some solid residues. The asphalt smoke generated by combustion is discharged after filtering. During the combustion process, the electronic balance weighs the weight change of the asphalt mixture in real time, calculates the weight loss of asphalt combustion, and then calculates the percentage content of asphalt and the percentage of oil stone in real time.

Structural composition

Combustion equipment: that is, the furnace body of the combustion furnace, including the combustion chamber, heater, smoke collection chamber and blast exhaust part. The combustion chamber is used to place the asphalt mixture sample and provide a high-temperature combustion environment. The heater provides the required heat for combustion, the smoke collection chamber collects the smoke generated by combustion, and the blast exhaust part discharges the smoke.
Weight measuring equipment: generally uses a high-precision electronic balance, which can accurately resolve to 0.1g or even higher precision, used to weigh the weight change of the asphalt mixture during the combustion process in real time, and provide data support for calculating the asphalt content.
Test measurement control and data processing part: usually composed of single-chip measurement and control system, etc., which can realize temperature control of the combustion process, test time control, data acquisition and processing functions, such as automatic detection of test endpoint, calculation of asphalt content and oil-stone ratio, etc., and can display the test results through the display screen and print the printer.
Main features
High precision: using high-precision electronic balance and temperature sensor, it can accurately measure the weight change and combustion temperature of asphalt mixture, and the asphalt content test accuracy can reach 0.1%.
Environmental protection and energy saving: it has the function of secondary combustion in the post-combustion chamber and high-temperature filtration and exhaust system, which can perform secondary combustion and filtration treatment on the exhaust gas generated by combustion, reduce harmful gas emissions, and reduce pollution to the environment.
High degree of automation: the instrument can automatically control the combustion temperature, blast exhaust and other operations, automatically detect the test endpoint, automatically calculate and display asphalt content, oil-stone ratio, sample loss weight, test time and other data, and can also automatically print the test report.
Easy operation: the operator only needs to enter the sample weight and calibration coefficient, load the sample, and press the work key to start the test. The entire test process does not require complicated manual operation.
