Product Details

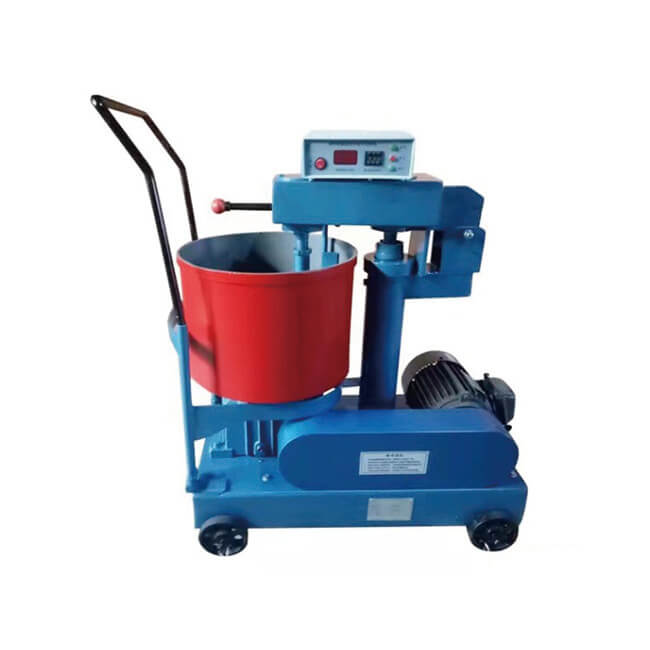

UJZ-15 Laboratory Vertical Mortar Mixer
1. Product Overview
- Model: UJZ-15
- Type: Vertical Mortar Mixer for Laboratory
- Application: Used for uniformly mixing cement mortar, mixtures, etc. in construction and building materials laboratories, in compliance with relevant national standards (such as JG/T 3033 "Mortar Mixer for Construction").
| Brand | Shengshiweiye | Model | UJZ-15 | Weight | 75kg |
| Ambient temperature | ≤35℃ | Relative humidity | 85％ | Drum depth | 290mm |
| Mixing blade | 2 layers 6 pieces x 60 | Applicable range | Cement mortar | Drum diameter | 380mm |
| Display mode | Digital display | Drum diameter | 3士0.5mm | Mounting method | Floor-standing |
| Standards met | JG/13033-1996 Test method for the performance of building sand purple foundation | Mixing bladeGap between stirring blade and bottom of mixing drum | 3士0.5mm | Gap between fixed blade and mixing drum wall | φ230mm |
| Speed of stirring blade | Clockwise 80 soil 4r/mins | Mixer drum speed | Counterclockwise 60 soil 2r/min | Drum capacity | Feed 28L |
| Rated capacity of mixing drum | Discharge 15L | Dimensions | 80*50*90cm |
2. Main technical parameters
- Stirring capacity: 15 liters (common rated capacity, subject to actual model)
- Stirring speed: usually fixed speed or adjustable (such as 60-80r/min, low speed to ensure uniformity)
- Motor power: about 0.55-0.75kW (slightly different depending on the manufacturer's design)
- Stirring blades: Material: stainless steel (corrosion resistant)
- Quantity: 2 sets (clockwise + counterclockwise rotation to ensure no dead angle stirring)
- Timing function: 0-999 seconds or 0-10 minutes adjustable (automatic shutdown)
- Voltage: 220V/50Hz (conventional laboratory electricity)
3. Structural features
- Vertical design: saves space, easy to operate and observe.
- Mixing barrel: made of stainless steel, removable for cleaning.
- Control system: digital display timer, simple and intuitive operation panel.
- Safety protection: overload protection, emergency stop button, etc.
4. Applicable standards and specifications
- Comply with the Chinese national standard JG/T 3033-1996 "Mortar mixer for construction" or newer versions.
- Applicable to test requirements such as GB/T 17671-1999 (test method for cement mortar strength).
5. Operation precautions
- Feeding order: It is recommended to add water first and then dry materials to avoid agglomeration.
- Load limit: Do not exceed the rated capacity (15L) to prevent motor overload.
- Cleaning and maintenance: Clean the mixing barrel and blades in time after use to avoid mortar hardening.
- Calibration check: Check the blade wear regularly to ensure mixing uniformity.ensure compliance with quality management standards.
6. Common application scenarios
- Cement mortar mix ratio test
- Laboratory preparation of building insulation materials (such as bonding mortar)
- Material research of scientific research units or quality inspection agencies
7.Purchase suggestions
- Confirm the needs: whether the capacity and mixing speed match the experimental requirements.
- Brand and after-sales: Give priority to professional laboratory equipment manufacturers (such as Wuxi Jianyi, Shanghai Meiyu, etc.)
- Complete certification: Check CE, ISO and other certifications to ensure compliance with quality management standards.
