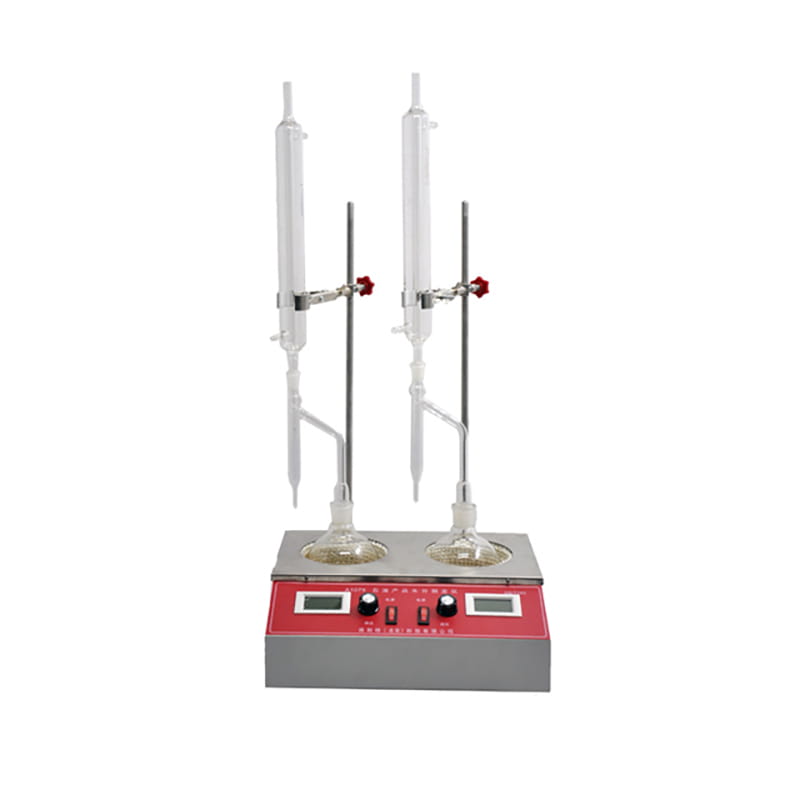

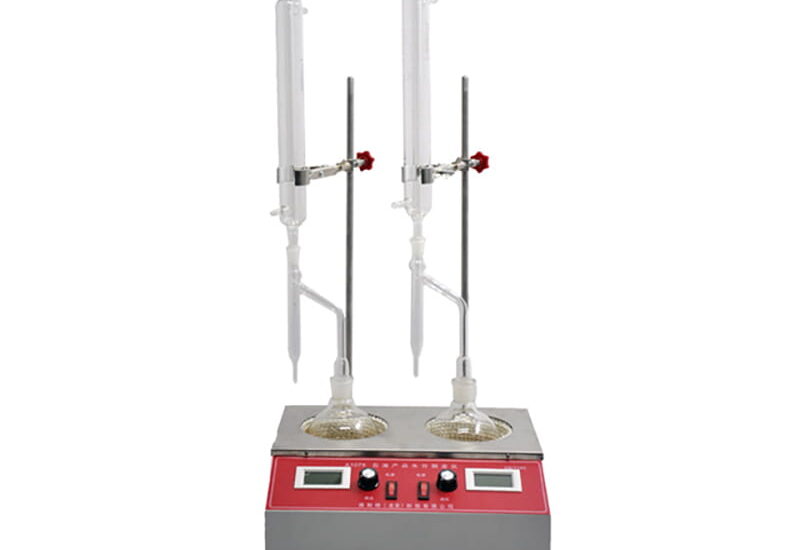

Model A1075 Dual‑Unit Water Content Tester for Petroleum Products is designed and manufactured in accordance with the requirements of national standard GB/T260. It is suitable for determining the water content in petroleum products. It can also be used to test the water content in greases according to the test method specified in GB/T512.

he instrument is widely used in:

• Petroleum laboratories
• Oil refineries
• Fuel production plants
• Chemical industries
• Quality inspection institutions

It is suitable for testing water content in:

• Crude oil
• Fuel oil
• Lubricating oil
• Diesel fuel
• Transformer oil
• Asphalt and bituminous materials

The tester adopts a heating distillation method, where water is separated from the sample through evaporation and condensation, then collected and measured in a graduated receiver.

Applicable Standards: GB/T260, GB/T512, ISO 3733, ASTM D95

Technical Parameters

Item	Specification
Power Supply	AC 220V±10%, 50Hz
Electric Furnace Heating Power	Single heating mantle: 500W (adjustable power)
Heating Control	Bidirectional thyristor stepless voltage‑regulating control
Ambient Temperature	15℃‑45℃
Relative Humidity	≤85%
Total Power Consumption	≤1100W
Flask	500ml
Condenser	300mm
Receiver	10ml

Testing Standards

The A1075 Water Content Tester is designed according to international petroleum testing methods:

• ASTM D95 — Standard Test Method for Water in Petroleum Products and Bituminous Materials by Distillation
• Related petroleum laboratory testing methods

ASTM D95 is widely used for determining water content in petroleum products by distilling the sample with a water-immiscible solvent and measuring the collected water volume.

Working Principle

The A1075 uses the distillation method for water content determination.

Testing process:

1. Petroleum sample is mixed with solvent.
2. The mixture is heated to generate vapor.
3. Water and solvent vapor are condensed.
4. Water separates from solvent due to density difference.
5. The collected water volume is measured through a graduated receiver.

The final result represents the water content of the petroleum sample.

Main Features

1. Dual Heating Unit Design

The A1075 adopts a dual heating structure.

Advantages:

✔ Two samples can be tested simultaneously
✔ Improved laboratory efficiency
✔ Suitable for continuous quality inspection
✔ Reduces testing time

2. Independent Temperature Control

Each heating unit can be adjusted independently.

Benefits:

• Stable heating performance
• Accurate distillation process
• Better repeatability
• Easy operation

3. Uniform Heating System

The heating structure provides:

• Even heat distribution
• Reduced overheating risk
• Stable vapor generation

Ensuring reliable water separation during testing.

4. Professional Petroleum Laboratory Design

Designed for daily laboratory use:

✔ Durable structure
✔ Easy operation
✔ Simple maintenance
✔ Suitable for long-term testing applications

Applications

Petroleum Industry

Used for:

• Crude oil water measurement
• Fuel quality inspection
• Petroleum product analysis

Oil Refinery

Applications:

• Incoming crude oil inspection
• Production quality control
• Finished fuel testing

Lubricant Industry

Testing:

• Engine oil
• Hydraulic oil
• Industrial lubricants

Asphalt Industry

Suitable for:

• Bitumen
• Asphalt materials
• Construction petroleum products

FAQ

Q1: What products can A1075 Water Content Tester measure?

The tester can measure water content in petroleum products, crude oil, fuel oil, lubricating oil, diesel fuel and bituminous materials.

Q2: Which testing standard does A1075 follow?

The instrument is designed according to ASTM D95 petroleum water content determination method.

Q3: Why does the A1075 use dual heating units?

The dual heating design allows two samples to be tested at the same time, improving laboratory efficiency.

Q4: Is this equipment suitable for refinery laboratories?

Yes. It is commonly used in petroleum laboratories, refineries, fuel manufacturers and inspection centers.

Q5: What is the testing principle?

The instrument separates and measures water content through distillation, condensation and volume measurement.
