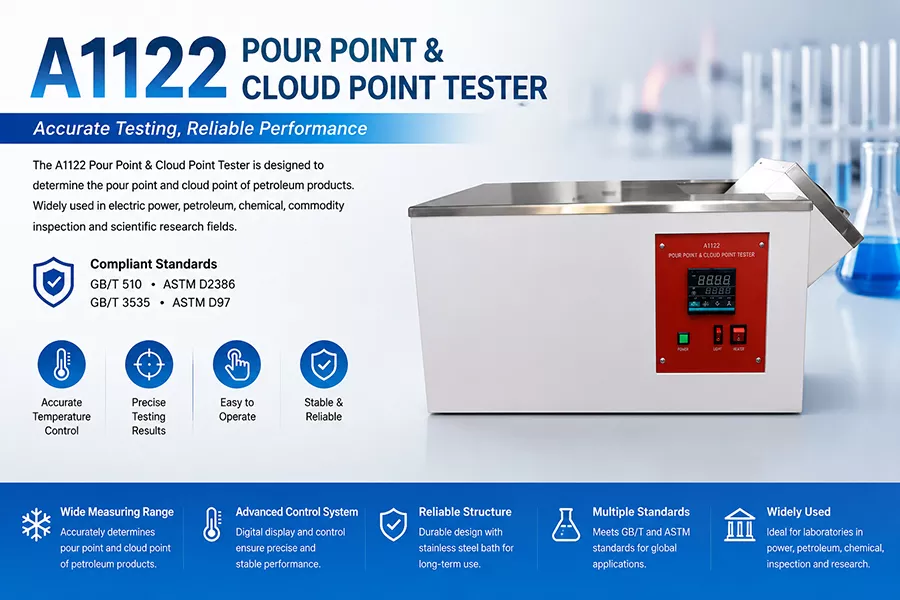

A1122 Cloud & Pour Point Tester (Manual Type) – Petroleum Product Low Temperature Testing Instrument
Product Overview
The A1122 Cloud Point and Pour Point Tester is a professional laboratory instrument designed for measuring the cloud point and pour point of petroleum products under low-temperature conditions.
This manual type petroleum testing instrument is widely used in petroleum laboratories, fuel quality inspection centers, oil refineries, research institutes, and industrial laboratories to evaluate the low-temperature fluidity and cold resistance performance of petroleum products such as diesel fuel, lubricating oil, and other non-water petroleum samples.
The A1122 tester complies with international and Chinese testing standards including ASTM D97, ASTM D2386, GB/T510, and GB/T3535, providing accurate and reliable low-temperature testing results.
Technical Specifications
Parameter
Specification
Product Name
Cloud Point and Pour Point Tester
Model
A1122
Applicable Standards
GB/T510, ASTM D2386, GB/T3535, ASTM D97
Temperature Range
Room Temperature to -70°C
Temperature Resolution
0.1°C
Temperature Control Accuracy
±0.5°C
Refrigeration Method
Compressor Refrigeration
Compressor Brand
DANFOSS (France)
Cooling Bath Structure
Single Bath, Double Test Chambers, Equal Temperature Bath
Timing Range
60 seconds
Timing Resolution
0.1s
Temperature Sensor
PT100 (JUMO Germany)
Sample Volume
6 ml
Relative Humidity
≤85%
Ambient Temperature
5°C–45°C
Power Consumption
<900W
Power Supply
AC220V ±10%, 50Hz
Dimensions
600mm × 450mm × 450mm
Net Weight
50kg
Key Features of A1122 Cloud Point and Pour Point Tester
1. Imported Compressor Refrigeration System
The instrument adopts an imported compressor refrigeration system to ensure sufficient cooling depth and stable low-temperature performance.
Refrigeration temperature can reach -70°C
Fast cooling speed
Reliable operation for long-term laboratory testing
The compressor refrigeration system provides stable cooling conditions required for accurate petroleum pour point and cloud point determination.
2. Built-in Powerful Cooling Fan Design
The A1122 tester uses an integrated high-performance cooling fan system.
Advantages:
No external circulating water required
Saves laboratory space
Easy installation and operation
Reduces maintenance requirements
3. Automatic Temperature Difference Control System
The instrument automatically controls the temperature difference between the cooling medium and the tested sample.
Benefits:
Ensures uniform cooling rate
Prevents excessive cooling speed
Improves test repeatability
Provides stable testing results
4. Precision Microcomputer Timing System
The built-in precision microcomputer timer ensures accurate observation and judgment of petroleum sample flow characteristics.
Features:
High timing accuracy
Easy operation
Reliable test results
Timing resolution:
Applications of Cloud and Pour Point Tester
The A1122 petroleum testing instrument is suitable for:
A1122 Cloud & Pour Point Tester
A1122 Cloud & Pour Point Tester (Manual Type) – Petroleum Product Low Temperature Testing Instrument
Product Overview
The A1122 Cloud Point and Pour Point Tester is a professional laboratory instrument designed for measuring the cloud point and pour point of petroleum products under low-temperature conditions.
This manual type petroleum testing instrument is widely used in petroleum laboratories, fuel quality inspection centers, oil refineries, research institutes, and industrial laboratories to evaluate the low-temperature fluidity and cold resistance performance of petroleum products such as diesel fuel, lubricating oil, and other non-water petroleum samples.
The A1122 tester complies with international and Chinese testing standards including ASTM D97, ASTM D2386, GB/T510, and GB/T3535, providing accurate and reliable low-temperature testing results.
Technical Specifications
Key Features of A1122 Cloud Point and Pour Point Tester
1. Imported Compressor Refrigeration System
The instrument adopts an imported compressor refrigeration system to ensure sufficient cooling depth and stable low-temperature performance.
The compressor refrigeration system provides stable cooling conditions required for accurate petroleum pour point and cloud point determination.
2. Built-in Powerful Cooling Fan Design
The A1122 tester uses an integrated high-performance cooling fan system.
Advantages:
3. Automatic Temperature Difference Control System
The instrument automatically controls the temperature difference between the cooling medium and the tested sample.
Benefits:
4. Precision Microcomputer Timing System
The built-in precision microcomputer timer ensures accurate observation and judgment of petroleum sample flow characteristics.
Features:
Timing resolution:
Applications of Cloud and Pour Point Tester
The A1122 petroleum testing instrument is suitable for:
Petroleum Industry
Oil Refineries
Research Laboratories
Inspection Institutions
Product Advantages for Laboratories
Frequently Asked Questions
1. What is a cloud point and pour point tester?
A cloud point and pour point tester is a petroleum laboratory instrument used to determine the low-temperature characteristics of petroleum products.
It measures:
2. What standards does A1122 cloud point tester comply with?
The A1122 tester complies with:
It is suitable for standard petroleum quality testing laboratories.
3. What is the lowest temperature this instrument can reach?
The A1122 cloud and pour point tester can reach a temperature range from room temperature down to:
-70°C
4. What type of refrigeration system does the instrument use?
The instrument uses an imported compressor refrigeration system with a DANFOSS compressor from France.
5. What is the sample volume required?
The required petroleum sample volume is:
6 ml
6. Is circulating water required during operation?
No.
The A1122 tester adopts a built-in cooling fan design and does not require an external circulating water system.
7. Who uses this cloud point and pour point tester?
Typical users include:
