Product Overview

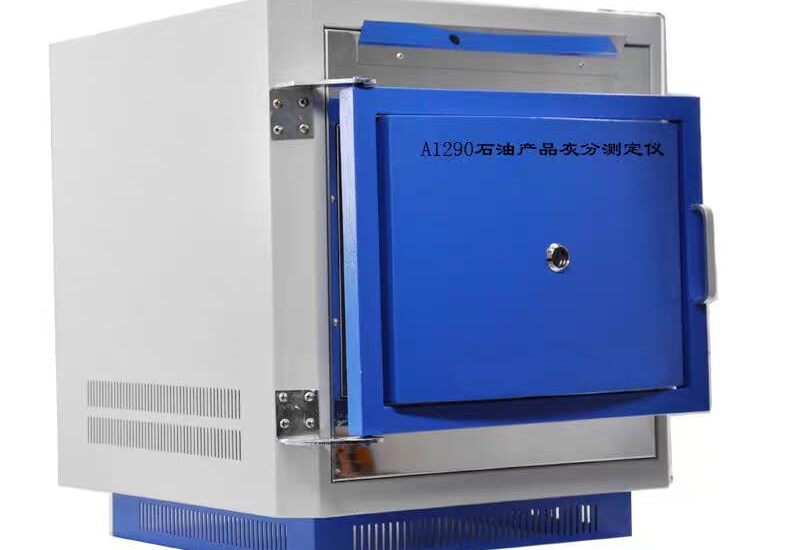

The A1290 Ash Content Tester is a laboratory testing instrument designed to determine the ash content of petroleum products.

Ash content is an important quality parameter for petroleum products because inorganic residues and non-combustible materials can affect product quality, equipment cleanliness and subsequent processing performance. The A1290 provides a controlled high-temperature environment for the determination of ash in petroleum samples.

The instrument is widely used in petrochemical laboratories, petroleum testing laboratories, coal laboratories, building material laboratories, metallurgical laboratories, scientific research institutions and university laboratories.

The A1290 adopts a three-sided heating furnace structure, with heating elements located on both sides and the top of the furnace chamber. This design helps improve temperature distribution and provide a stable heating environment for ash determination.

The furnace chamber uses high-quality vacuum fiber insulation material, which provides good thermal insulation, fast heating and improved energy efficiency.

Technical Specifications

Parameter	Specification
Model	A1290
Power Supply	AC 220V ±10%, 50Hz
Temperature Range	Ambient Temperature ~1000°C
Temperature Control	775 ±25°C
Temperature Accuracy	±3°C
Heating Element	Heating Wire
Heating Rate	900°C < 20 min
Total Power	3.5 kW
Crucible Options	50 mL / 100 mL / 120 mL / 150 mL

Applicable Standards

The A1290 Ash Content Tester is designed for petroleum product ash determination according to the following standards:

• GB/T 508
• GB/T 2433
• SH/T 0067

These standards provide testing requirements and methods for determining ash content in relevant petroleum products.

Note: The applicable standard should be selected according to the specific petroleum product and testing requirement.

Main Features

1. Three-Sided Heating Design

The furnace chamber is heated from both sides and the top, creating a three-sided heating structure.

This configuration helps improve heat distribution inside the furnace and provides a more uniform temperature environment for laboratory testing.

2. Stable Double-Layer Furnace Housing

The A1290 uses a double-layer furnace housing structure, which improves structural stability and helps reduce heat transfer to the external housing.

3. Durable Steel Housing

The outer cabinet is manufactured from high-quality steel plate using stamping and welding processes.

The robust construction is designed for long-term laboratory use.

4. Vacuum Fiber Furnace Chamber

The furnace chamber uses high-quality vacuum fiber insulation material.

Its low thermal mass helps the instrument achieve:

• Fast temperature rise
• Good heat insulation
• Lower heat loss
• Improved energy efficiency
• Stable high-temperature operation

5. High-Temperature Testing Capability

The instrument provides a temperature range from ambient temperature to 1000°C, while the specified temperature control condition is 775±25°C.

This makes the A1290 suitable for high-temperature ash determination applications

A1290 Ash Determination Working Principle

The basic principle of petroleum product ash determination is to heat a prepared petroleum sample under specified conditions until combustible components are removed.

The remaining inorganic residue is then treated as the ash content of the sample.

The general testing process includes:

Sample Preparation → High-Temperature Heating → Combustion → Residue Formation → Cooling → Weighing → Ash Content Calculation

The exact sample preparation, heating procedure and calculation method should follow the applicable testing standard, such as GB/T 508, GB/T 2433 or SH/T 0067.

A1290 vs. General Ash Testing Equipment

For petroleum laboratories, choosing an ash testing instrument requires attention to more than maximum temperature.

Important specifications include:

Key Factor	A1290
Application	Petroleum product ash determination
Maximum Temperature Range	Up to 1000°C
Standard Control Temperature	775±25°C
Temperature Accuracy	±3°C
Heating Structure	Three-sided heating
Heating Element	Heating wire
Furnace Insulation	Vacuum fiber
Heating Rate	900°C in <20 min
Power	3.5 kW
Crucible Capacity	50 / 100 / 120 / 150 mL

Typical Customers

The A1290 Ash Content Tester is suitable for:

• Petroleum refineries
• Petrochemical companies
• Fuel testing laboratories
• Oil quality inspection laboratories
• Third-party testing laboratories
• Research institutes
• Universities
• Coal testing laboratories
• Metallurgical laboratories
• Building material laboratories

Frequently Asked Questions

What is an Ash Content Tester?

An Ash Content Tester is laboratory equipment used to determine the amount of non-combustible residue remaining after a sample is heated under specified conditions.

What is the A1290 Ash Content Tester used for?

The A1290 is primarily used to determine the ash content of petroleum products and is suitable for petroleum, petrochemical, research and quality-control laboratories.

Which standards does A1290 comply with?

The A1290 is designed for testing according to GB/T 508, GB/T 2433 and SH/T 0067.

What is the maximum temperature of A1290?

The temperature range of the A1290 is ambient temperature to 1000°C.

What is the temperature control condition?

The specified temperature control condition is 775±25°C, with a temperature accuracy of ±3°C.

How fast can the A1290 heat up?

The heating rate specification is 900°C in less than 20 minutes.

What type of heating element does the instrument use?

The A1290 uses a heating wire as its heating element.

What type of furnace insulation does A1290 use?

The furnace chamber uses high-quality vacuum fiber insulation, which helps provide good thermal insulation, fast heating and reduced heat loss.

What crucible capacities are available?

The A1290 supports crucible capacities of:

50 mL, 100 mL, 120 mL and 150 mL.
