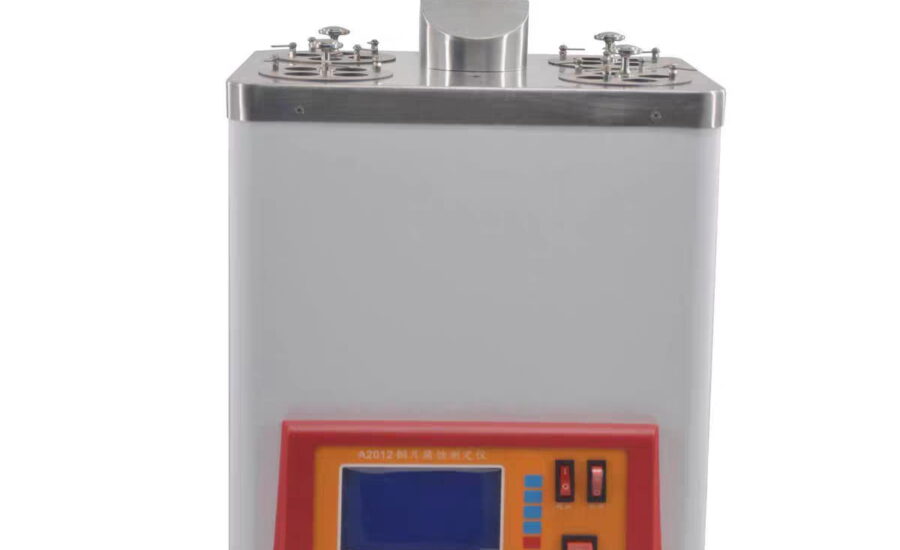

A2012 Copper Strip Corrosion Tester | Petroleum Product Corrosion Testing Instrument

Product Overview

The A2012 Copper Strip Corrosion Tester is a professional laboratory instrument used to determine the corrosiveness of petroleum products on copper strips.

It is widely applied for testing aviation gasoline, jet fuel, automotive gasoline, natural gasoline, solvent oils, diesel fuel, distillate fuels, lubricating oils and other petroleum products.

The instrument evaluates the corrosion level of petroleum products by immersing a polished copper strip into the test sample under controlled temperature conditions, then comparing the discoloration of the copper strip with the standard copper corrosion color chart.

The A2012 copper corrosion tester adopts PID temperature control technology, providing accurate temperature stability and reliable test results. It is suitable for petroleum laboratories, fuel quality inspection centers, refineries, research institutes and third-party testing laboratories.

Technical Specifications

Parameter	Specification
Model	A2012
Power Supply	AC220V ±10%, 50Hz
Temperature Control Range	Room Temperature ~150℃
Temperature Accuracy	±0.1℃
Temperature Display	LED Digital Display
Timer Range	1 min ~24 hours
Sensor	PT100
Test Holes	4 Holes
Sample Quantity	1~16 Samples
Relative Humidity	≤85%
Ambient Temperature	5℃~40℃
Main Heating Power	600W
Auxiliary Heating Power	1000W
Total Power Consumption	≤1800W
External Dimensions	480mm × 360mm × 520mm
Net Weight	Approx.18kg

Applicable Standards

The A2012 Copper Strip Corrosion Tester conforms to the following standards:

• GB/T 5096
  Test Method for Copper Strip Corrosion of Petroleum Products
• GB/T 7326
  Petroleum Product Copper Corrosion Test Method
• ASTM D130
  Standard Test Method for Detection of Copper Corrosion from Petroleum Products
• ASTM D4048
  Standard Test Method for Detection of Copper Corrosion from Aviation Turbine Fuels
• ISO 6251
  Liquid Petroleum Products – Corrosiveness to Copper
• SH/T 0232
• SH/T 0023

Main Features

1. Compact Design and Easy Operation

The instrument features a compact structure, modern appearance and user-friendly operation interface. It is suitable for laboratory environments with limited space.

2. High Precision Oil Bath Temperature Control

The test bath adopts an oil bath heating method with excellent temperature uniformity, ensuring stable test conditions and accurate corrosion evaluation.

3. Programmable Test Time with Alarm Function

The testing time can be preset according to different standards. After completion, the instrument automatically alarms to improve testing efficiency and reduce operator workload.

4. PID Intelligent Temperature Control Technology

Advanced PID temperature control technology provides:

• Fast heating response
• Stable temperature control
• Reduced temperature fluctuation
• Improved test accuracy

Testing Applications

The A2012 Copper Strip Corrosion Tester is suitable for corrosion evaluation of:

Automotive Fuels

• Gasoline
• Automotive gasoline
• Natural gasoline
• Diesel fuel

Aviation Fuels

• Aviation gasoline
• Jet fuel
• Aviation turbine fuel

Petroleum Products

• Solvent oil
• Distillate fuel oil
• Lubricating oil
• Hydrocarbon products

Laboratory Applications

• Petroleum quality inspection laboratories
• Fuel testing centers
• Oil refineries
• Chemical research laboratories
• Universities and research institutes
• Third-party testing organizations

Frequently Asked Questions (FAQ)

What is a Copper Strip Corrosion Tester used for?

A Copper Strip Corrosion Tester is used to determine the corrosiveness of petroleum products by measuring the discoloration of copper strips after exposure to fuel or oil samples.

Which standards does A2012 Copper Strip Corrosion Tester comply with?

The A2012 complies with ASTM D130, GB/T 5096, GB/T 7326, ASTM D4048, ISO 6251, SH/T 0232 and SH/T 0023 standards.

What petroleum products can be tested?

It can test gasoline, aviation fuel, jet fuel, diesel, solvent oil, lubricating oil, distillate fuel oil and other hydrocarbon products.

What is the temperature control accuracy?

The temperature accuracy is ±0.1℃, ensuring stable and repeatable test results.

How many samples can be tested at one time?

The instrument is equipped with 4 test holes and supports testing from 1 to 16 samples according to test requirements.

Does the instrument have automatic timing?

Yes. The A2012 provides programmable test time settings from 1 minute to 24 hours with an alarm function after completion.
