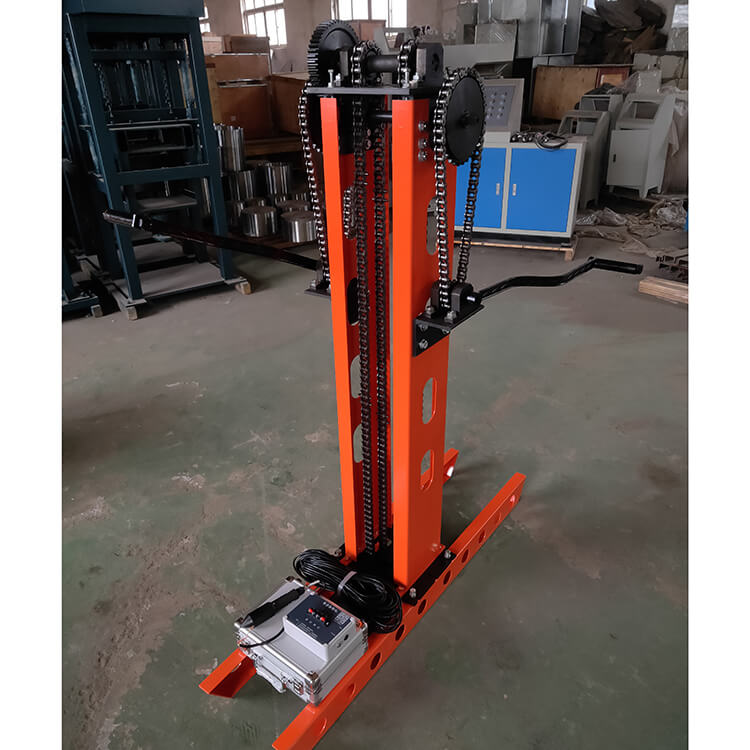

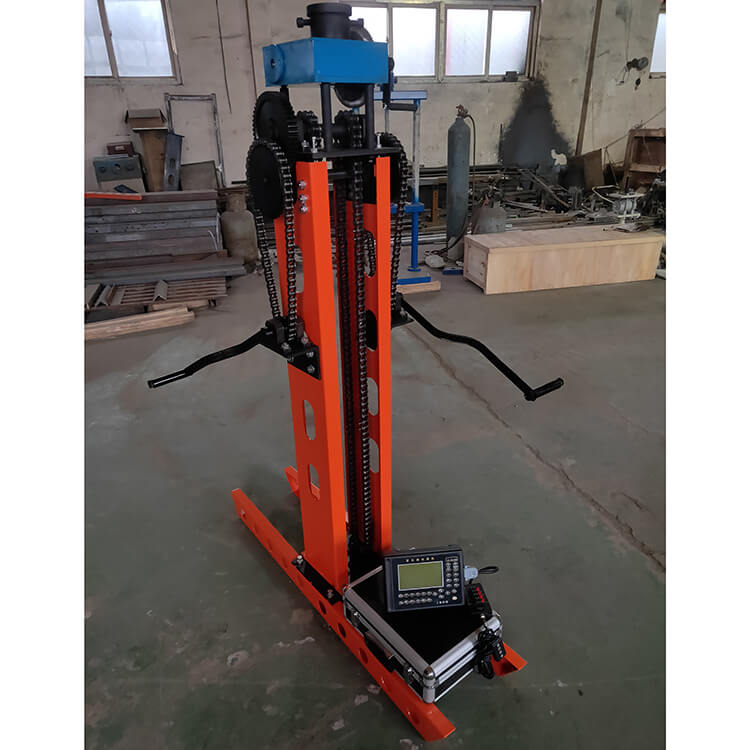

This CLD-3 mainly used to test geological structure of civil engineering, bridges and other projects in site, with corresponding sensors, measure physical quantities such as pressure, tension, torque, and gravity.

The instrument press a probe into soil at a uniform speed driven by mechanical transmission, It is suitable for test in soft, cohesive soil, old clay, loess, sandy soil and other strata.

Technical Parameters
Driven mode Handle-chains type
Rated penetration capacity 30KN
Pull-out Force 40KN
Penetration depth 20 meters
Penetration speed 0.8m/min
Lifting speed 1-2m/min
Penetration rod Φ28mm

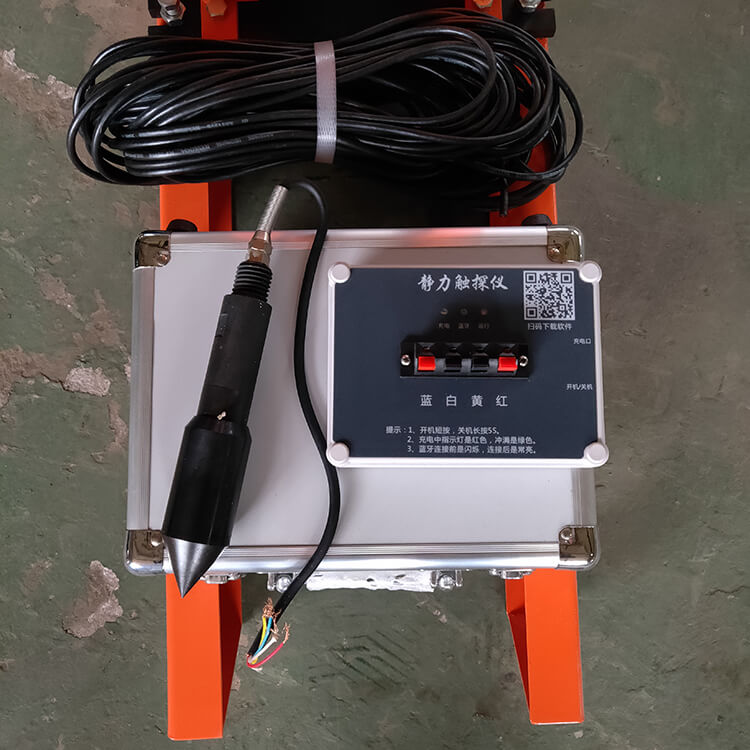

Penetration head 10cm2, single bridge head.
Anchor Length 1.2m
Anchor Piece Diameter 120mm
Data Acquisition System Automatic record
Net weight About 180KGS
