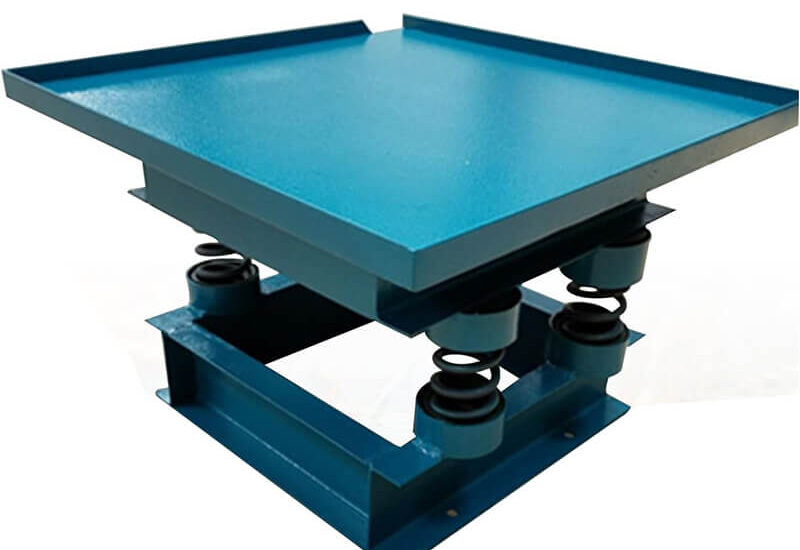

Product Introduction

The Concrete Vibrating Table is a specialized laboratory and construction testing device designed for compacting concrete specimens during molding. It uses high-frequency vibration to remove trapped air inside the concrete mix, ensuring uniform density and improving the accuracy and reliability of test results.

This equipment is widely used in cement plants, construction material laboratories, highway and bridge engineering projects, research institutes, and quality inspection centers.

Working Principle

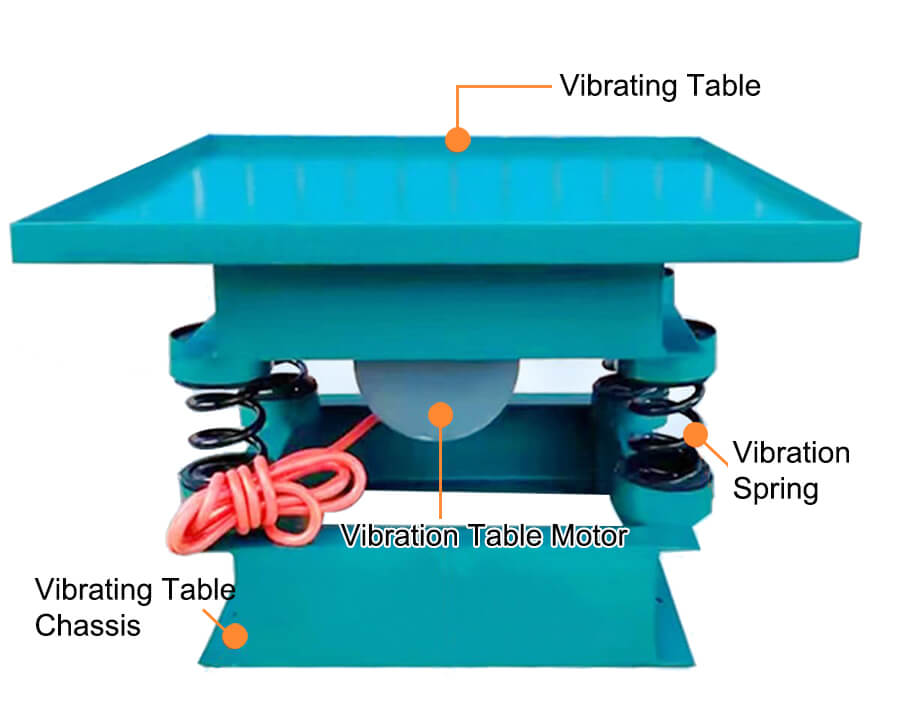

The vibrating table operates through an electric motor that drives an eccentric mechanism to generate consistent and uniform vibration. During operation, the vibration helps concrete mix particles rearrange and air bubbles escape, resulting in a denser and more homogeneous specimen structure.

Key Features

• High-efficiency vibration system: Stable and uniform vibration output for consistent results
• Heavy-duty steel structure: Reinforced welded steel frame for long service life
• Uniform compaction performance: Ensures consistent density of concrete specimens
• Easy operation: Simple control system with start/stop function
• Low noise design: Smooth operation with reduced vibration noise
• Compatible with various molds: Suitable for different standard concrete molds
• Durable for laboratory use: Designed for continuous and frequent testing environments

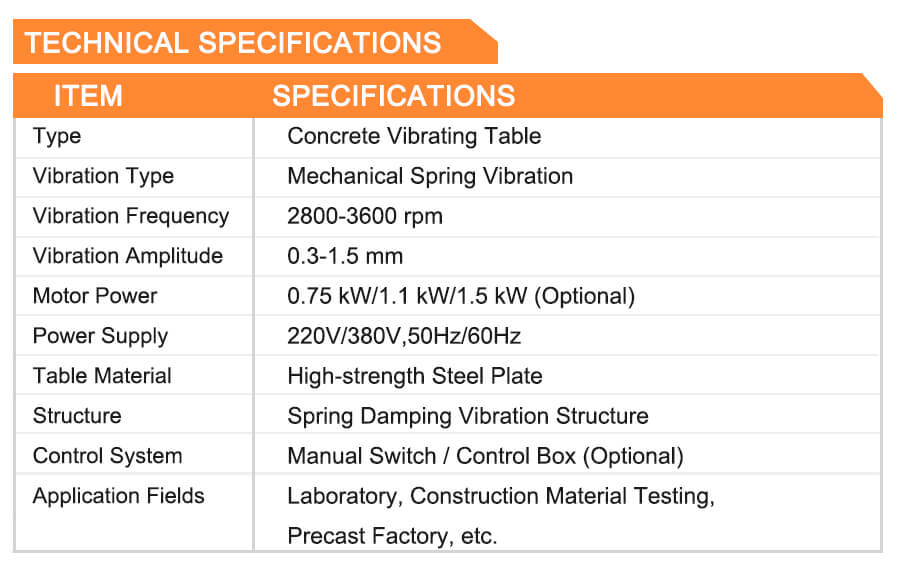

Technical Parameters (Customizable)

• Power Supply: 220V / 380V (optional)
• Motor Power: 0.75kW – 1.5kW
• Vibration Frequency: Approx. 2800–3000 vibrations/min
• Table Size: 800×800mm / 1000×1000mm or customized
• Vibration Mode: Vertical / Horizontal vibration (optional)
• Material: High-strength welded steel frame
• Control System: Manual / Automatic control optional

Applications

• Concrete specimen molding in laboratories
• Cement and building material testing
• Highway and bridge engineering quality inspection
• University and research institute experiments
• Construction material quality control centers
• Precast concrete production testing
