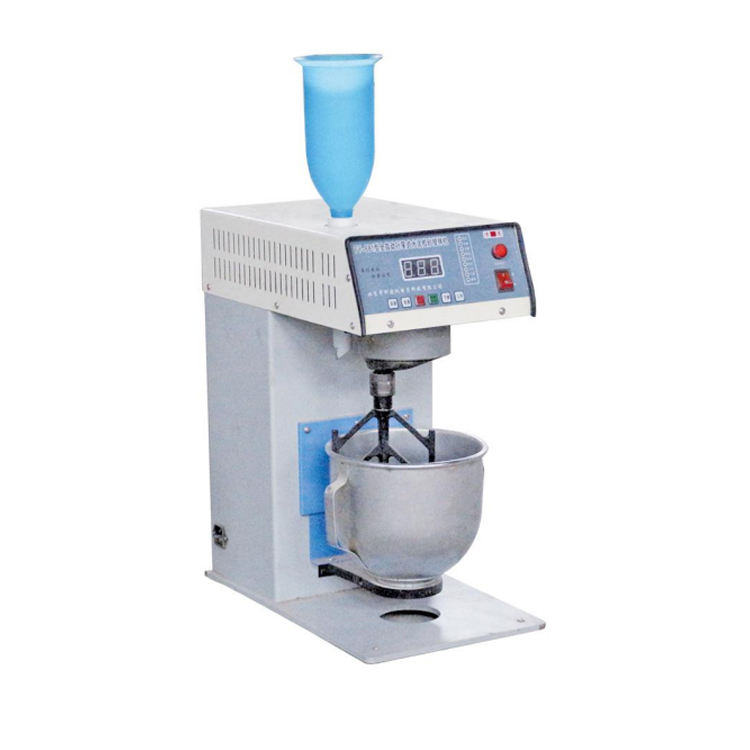

FY-681 cement mortar mixer

Application overview:
The FY-681 cement mortar mixer is used to test the strength of cement mortar. Our company is based on the industry standard JTG E30-2005 of the People's Republic of China "Testing Regulations for Cement-based Cement Concrete of Highway Engineering" T 0506-200 "Cement mortar strength "Inspection method (ISO method)" has been independently developed and developed, and has applied for a patent.
Standard cement test mortar and mortar mixer.
This machine is one of the indispensable and indispensable equipment for cement testing in cement plants, building construction units, relevant professional colleges and scientific research units.

Technical Parameters
Rotating speed of agitating blades: speed gear rotation r / min revolution r / min low speed 140 ± 5 62 ± 5 high speed 285 ± 10 125 ± 10
The motion path of the stirring blade in the stirring pot is regulated by copper ISO679-1989 (E)
Mixing blade width: 135mm
The connection thread of the mixing blade and the mixing blade shaft is M18 * 15
The working gap between the stirring blade and the stirring pot is 3 ± 1mm
The motor is a horizontal split-power two-speed DC permanent magnet motor with a maximum power of 200W
Input voltage: 220V
Dimensions: 600 * 320 * 600mm length, width and height
Net weight: 70KG
