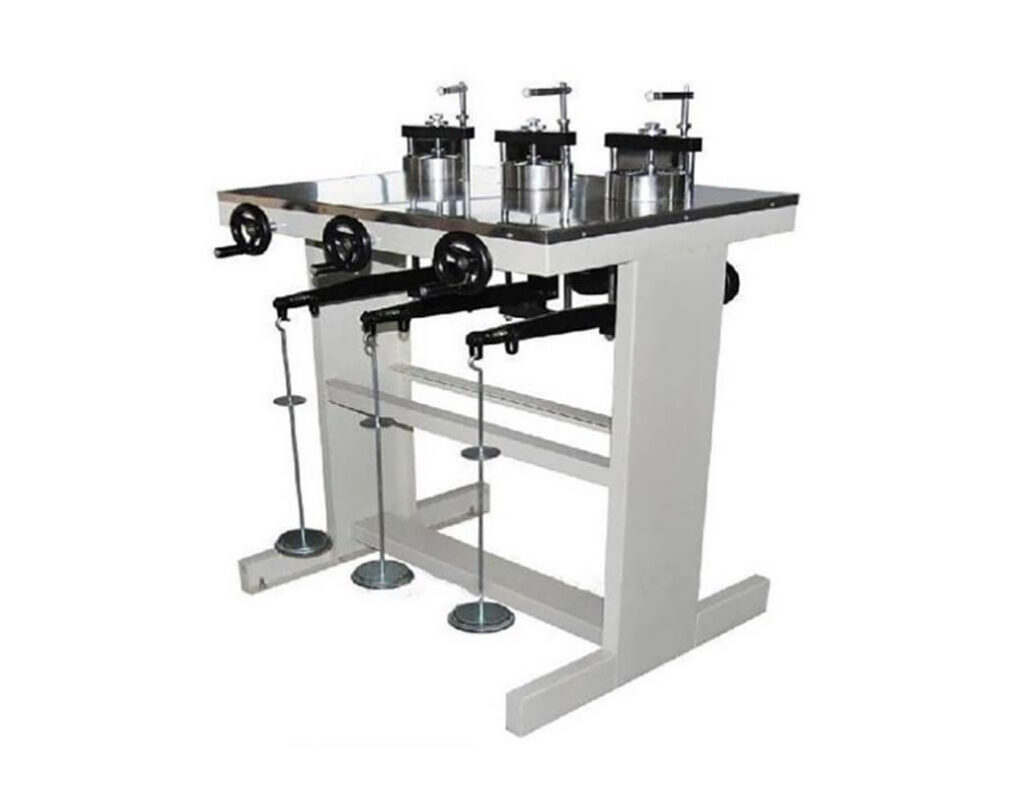

Professional High Pressure Consolidation Instrument for Accurate Soil Compression Analysis

The High Pressure Consolidation Instrument is a laboratory testing instrument designed to evaluate the consolidation characteristics of soil under vertical loading. It measures the relationship between soil deformation and applied pressure, void ratio and pressure, and deformation over time, enabling engineers to determine key geotechnical parameters such as the compression coefficient, compression index, rebound index, compression modulus, coefficient of consolidation, and settlement characteristics.

Widely used in geotechnical engineering laboratories, universities, research institutes, highway projects, railway construction, hydraulic engineering, and foundation engineering, this apparatus provides reliable data for soil settlement analysis and foundation design.

Technical Specifications

Item	Specification
Product Name	High Pressure Consolidation Apparatus
Structure	Three-Cell Single Lever
Test Capacity	Two Specimens Simultaneously
Lever Ratio	20:1 / 24:1
Specimen Area	30 cm² / 50 cm²
Pressure Range	12.5–4000 kPa
Maximum Pressure (30 cm²)	4000 kPa
Maximum Pressure (50 cm²)	2000 kPa
Loading System	Mechanical Lever
Pressure Point	Precision Bearing Structure

Dimensions

Dual Model

• Dimensions: 800 × 675 × 1120 mm
• Weight (without loading weights): 80 kg

Triple Model

• Dimensions: 800 × 675 × 1120 mm
• Weight (without loading weights): 90 kg

Why Choose This High Pressure Consolidation Apparatus?

Designed for precision, durability, and ease of operation, this equipment delivers stable loading performance and accurate measurement results for professional soil mechanics testing.

Key Benefits

• Simultaneous testing of two soil specimens
• High-pressure loading up to 4000 kPa
• High-precision bearing-supported loading points
• Stable lever loading system for consistent force application
• Heavy-duty steel frame for long-term laboratory use
• Suitable for a wide range of soil consolidation and settlement tests

Main Applications

The High Pressure Consolidation Apparatus is ideal for:

• Soil consolidation testing
• Soil compression tests
• Foundation settlement analysis
• Geotechnical laboratory research
• Civil engineering projects
• Highway and railway engineering
• Dam and hydraulic engineering
• Building foundation investigations
• University teaching laboratories
• Quality control laboratories

What Can the Instrument Measure?

This apparatus helps engineers determine important soil parameters, including:

• Compression coefficient (a)
• Compression index (Cc)
• Recompression (rebound) index (Cr)
• Compression modulus (Es)
• Coefficient of consolidation (Cv)
• Unit settlement
• Void ratio versus pressure relationship
• Deformation versus loading pressure
• Deformation versus time

These parameters are essential for evaluating soil behavior under structural loads and predicting long-term settlement.

Product Features

Three-Cell Single Lever Structure

The apparatus adopts a three-cell single lever design, allowing efficient laboratory operation while maintaining excellent testing accuracy.

Simultaneous Dual Testing

Two groups of specimens can be tested simultaneously, improving laboratory efficiency and reducing testing time.

High Accuracy Bearing Loading System

The loading points utilize a precision bearing structure that minimizes friction and improves measurement accuracy.

Stable Mechanical Loading

The lever loading mechanism ensures stable pressure transfer throughout the entire consolidation process.

Rugged Laboratory Construction

Manufactured with a reinforced steel frame for excellent rigidity, corrosion resistance, and long service life.

Industries Served

This equipment is widely used in:

• Geotechnical Engineering Laboratories
• Construction Materials Testing Laboratories
• Universities
• Research Institutes
• Highway Engineering
• Railway Engineering
• Bridge Construction
• Dam Engineering
• Foundation Engineering
• Third-Party Testing Laboratories

Frequently Asked Questions (FAQ)

What is a High Pressure Consolidation Apparatus used for?

It is used to determine the consolidation and compressibility characteristics of soil by measuring deformation under controlled vertical pressure.

What parameters can be obtained from a consolidation test?

The apparatus can determine compression coefficient, compression index, rebound index, compression modulus, coefficient of consolidation, void ratio, and settlement characteristics.

How many samples can be tested at the same time?

This model supports simultaneous testing of two soil specimens, improving laboratory efficiency.

What is the maximum testing pressure?

The maximum pressure is 4000 kPa for 30 cm² specimens and 2000 kPa for 50 cm² specimens.

Which industries commonly use this equipment?

It is widely used in geotechnical laboratories, universities, civil engineering companies, construction material testing centers, transportation infrastructure projects, and research institutions.
