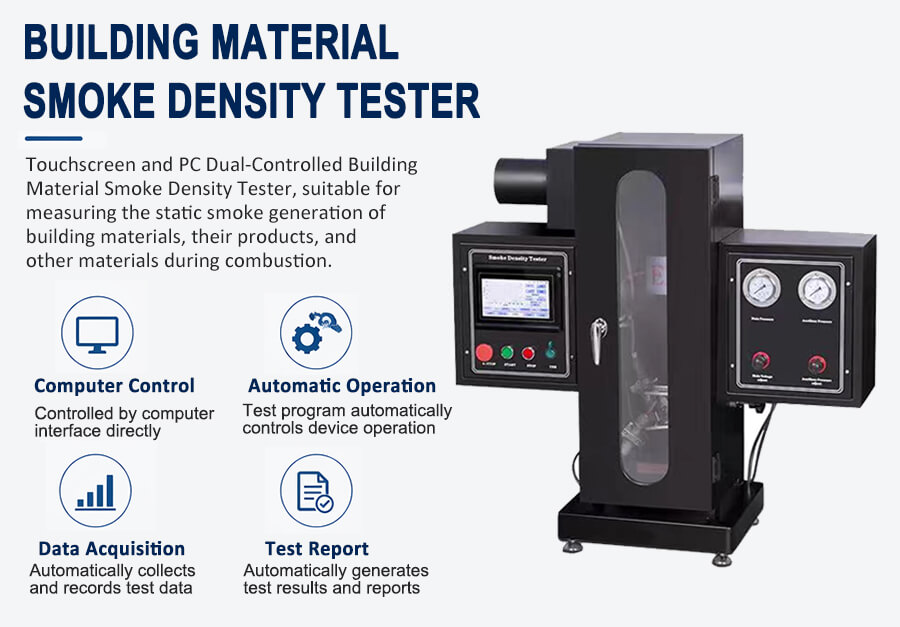

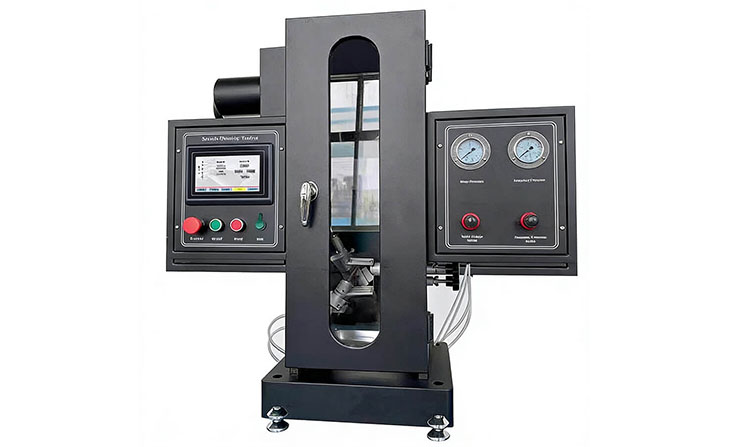

Product Description

The Smoke Density Tester for Building Materials is designed to measure the smoke generation characteristics of construction materials under controlled combustion conditions. It evaluates the optical smoke density produced when materials are exposed to heat or flame, helping determine fire safety performance and compliance with international standards.

This testing equipment is widely used in fire testing laboratories, building material manufacturers, quality inspection agencies, and research institutions.

Testing Principle

The instrument measures the reduction of light transmission caused by smoke generated during material combustion. The optical system records changes in light intensity, allowing accurate calculation of smoke density values.

The test results reflect how much smoke a material produces in a fire scenario, which is critical for building safety evaluation.

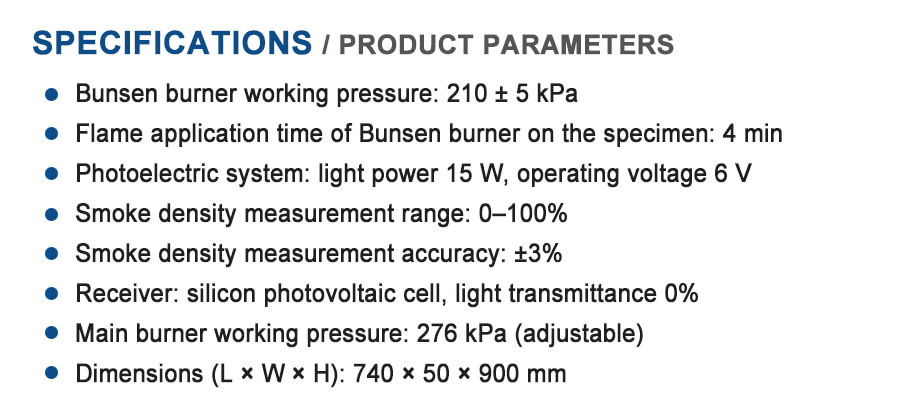

Technical Parameters

1. Maximum smoke density and smoke density rating: 0–100% continuously adjustable, automatic calculation
2. Calibration: standard optical filters, error ≤ 3%. Each unit is equipped with three calibration filters for light source verification and representative data accuracy
3. Bunsen burner working pressure: 210 ± 5 KPa
4. Flame application time: 4 minutes

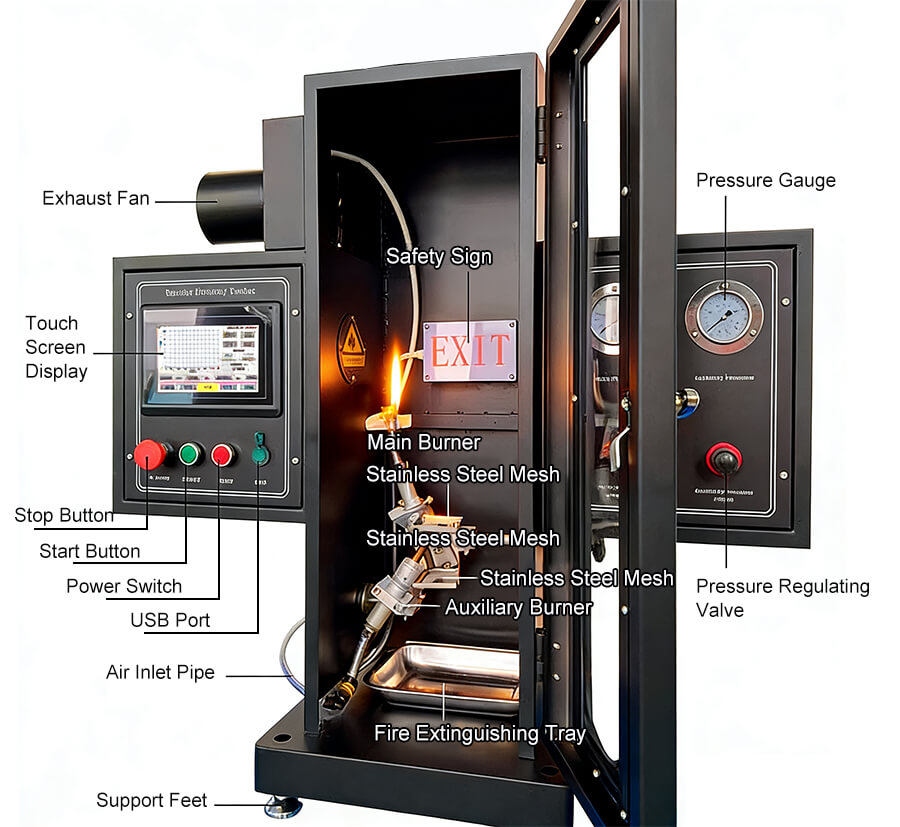

5. Burner type: Bunsen burner, length 260 mm, nozzle diameter 0.13 mm, installed at 45° angle to the smoke chamber
6. Photoelectric system: light source lamp, power 15 W, operating voltage 6 V
7. Exhaust system: equipped with high-power exhaust fan, automatically discharges smoke after test to external ventilation system
8. Smoke density measurement range: 0–100%
9. Measurement accuracy: ±3%
10. Receiver: silicon photocell, initial light transmittance set to 0%
11. Main burner working pressure: 276 kPa (adjustable)
12. Overall dimensions (L × W × H): 740 × 500 × 900 mm

Application

The Smoke Density Tester is suitable for testing the following materials:

• Building insulation materials
• Plastic and polymer materials
• Cable and wiring insulation
• Wall panels and decorative materials
• Composite construction materials
• Fire-retardant products

Standards Compliance

The equipment can be designed to meet international testing standards such as:

• ASTM E662
• ISO 5659-2
• BS 6401
• GB/T 8323

(Custom standards available upon request)

Key Features

• High-precision optical smoke density measurement system
• Stable and reliable test chamber structure

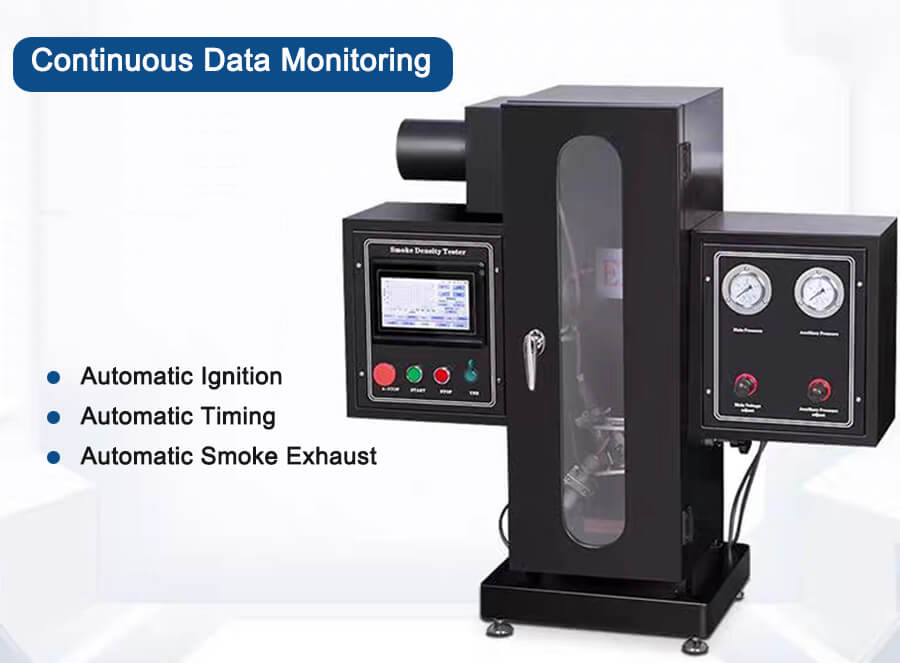

• Digital control system with real-time monitoring
• Automatic data acquisition and recording
• Adjustable light source and detector system
• Safety protection for high-temperature operation
• Easy operation with user-friendly interface

Advantages

• Accurate and repeatable smoke density measurement
• Complies with major international fire test standards
• Strong sealing chamber ensures stable test environment
• Suitable for certification and laboratory research
• Long service life and low maintenance cost

Why Choose Our Smoke Density Tester

We specialize in manufacturing professional fire testing and building material testing equipment. Our Smoke Density Tester is engineered for precision, stability, and long-term laboratory use.

We support OEM customization, including:

• Test standard configuration (ASTM / ISO / GB)
• Chamber size and structure
• Control system language
• Data acquisition software integration

FAQ

Q1: What is a smoke density test used for?
It measures the amount of smoke produced by materials during combustion, helping evaluate fire safety performance.

Q2: What standards does this equipment follow?
It can comply with ASTM E662, ISO 5659-2, BS 6401, and other standards.

Q3: What materials can be tested?
Plastics, insulation materials, cables, composite panels, and construction finishing materials.

Q4: Is customization available?
Yes, we can customize chamber size, testing range, and software system.
