B Type

SSB-3000BDY electro-hydraulic pressure testing machine

Product Details

SSB-3000BDY electro-hydraulic pressure testing machine

Specifications
Maximum test force: 3000kN;
Test machine level: level 1;
Relative error of test force indication: within ±1%;
Mainframe structure: double screw electric adjustment;
Compressed space: 650mm;
Piston stroke: 200mm;
Platen size: Φ300mm;
Effective distance between columns: 540mm;
Main frame dimensions: 960 × 740 × 2080 mm;
Control cabinet dimensions: 600 × 540 × 1370mm;
Machine power: 3.0kW (oil pump motor 2.2kW);
Oil source cabinet weight: about 160kg;
Host weight: about 3100kg;



SSB-3000BDY electro-hydraulic pressure testing machine SSB-3000BDY electro-hydraulic pressure testing machine

SYE-3000BD electro-hydraulic pressure testing machine is driven by hydraulic power source. It adopts intelligent measuring and controlling instrument to collect and process test data. It consists of four parts: test host, oil source (hydraulic power source), measurement and control system and test equipment. The maximum test force is 3000kN, and the accuracy of the test machine is better than grade 1.

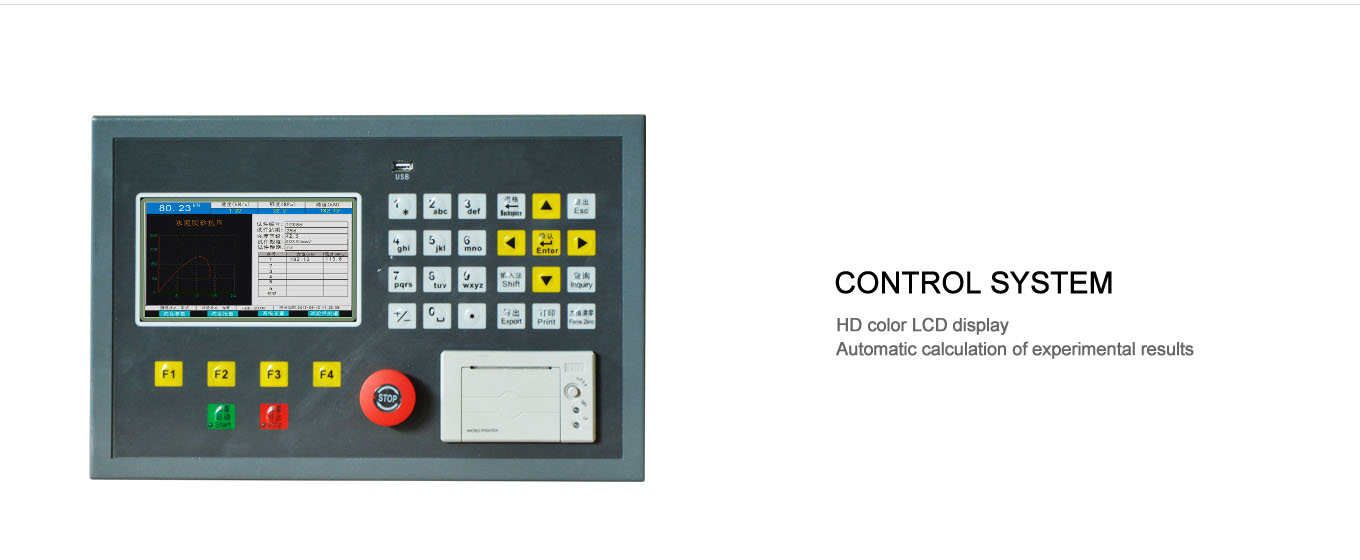

SYE-3000BD electro-hydraulic pressure testing machine can meet the national standard test requirements for brick, concrete, cement and other materials, manual loading, LCD screen display load, time and test curve.
The testing machine is a split structure of the main oil source; it is suitable for the compressive test of cement and concrete, and is equipped with appropriate fixtures and measuring devices to meet the tensile test, flexural test and static modulus test of concrete.
