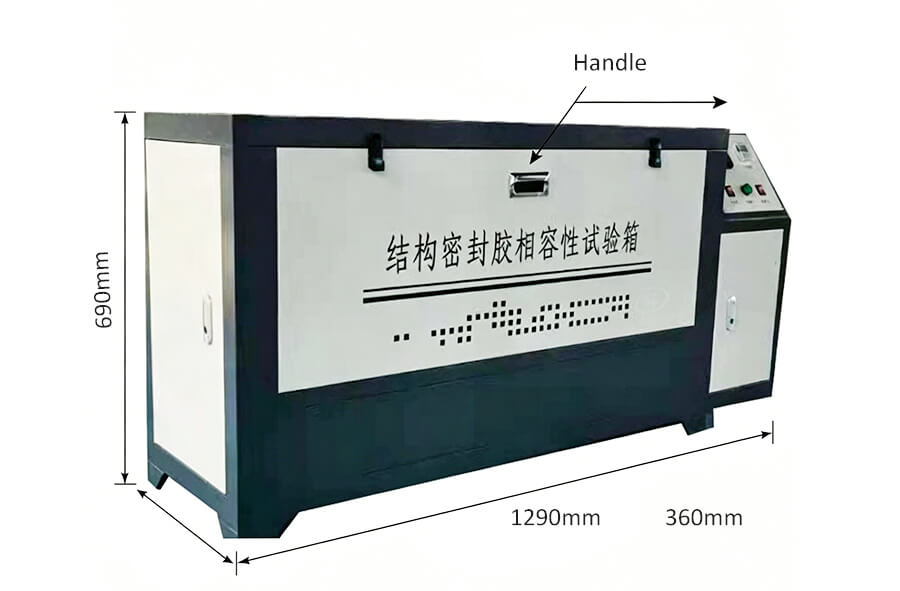

Structural Silicone Sealant Compatibility Test Chamber for Curtain Wall and Building Material Testing

The Structural Silicone Sealant Compatibility Test Chamber is designed to evaluate the compatibility of structural silicone sealants with construction materials such as coated glass, aluminum profiles, stone, metal panels, and other building substrates. The equipment provides a stable temperature-controlled environment to simulate long-term service conditions, helping laboratories and manufacturers verify adhesion performance and material compatibility before installation.

This testing chamber is widely used by curtain wall manufacturers, construction material laboratories, sealant producers, quality inspection agencies, and research institutions.

Technical Specifications

Item	Specification
Temperature Range	Ambient +10°C to 60°C (Customizable)
Temperature Accuracy	±0.5°C
Temperature Uniformity	±2°C
Chamber Material	Stainless Steel
Control System	Digital PID Controller
Display	LCD / Touch Screen
Power Supply	220V / 50Hz (Customizable)
Safety Protection	Over-temperature Protection

Specifications can be customized according to laboratory requirements.

What Is a Structural Silicone Sealant Compatibility Test Chamber?

A Structural Silicone Sealant Compatibility Test Chamber is laboratory equipment used to determine whether a structural silicone sealant is chemically and physically compatible with the substrates it will contact during service.

Compatibility testing helps identify potential issues such as:

• Adhesion failure
• Material discoloration
• Plasticizer migration
• Oil exudation
• Surface contamination
• Bond deterioration

By performing compatibility tests before construction, manufacturers can reduce the risk of sealant failure and improve the long-term safety of curtain wall systems.

Testing Principle

Test specimens are prepared by applying structural silicone sealant to representative construction materials. The samples are placed inside the chamber under controlled temperature conditions for a specified testing period.

After conditioning, the specimens are evaluated for:

• Adhesion performance
• Cohesive failure
• Surface contamination
• Oil migration
• Color changes
• Material interaction

The results help determine whether the sealant is suitable for long-term use with the selected substrates.

Benefits of Compatibility Testing

Compatibility testing is an essential quality control procedure before structural glazing installation.

It helps manufacturers:

• Improve building safety
• Prevent sealant failure
• Verify substrate compatibility
• Meet project quality requirements
• Reduce maintenance costs
• Extend curtain wall service life

Typical Industries

This equipment is widely used in:

• Curtain wall engineering companies
• Silicone sealant manufacturers
• Building material laboratories
• Construction quality inspection centers
• Universities and research institutes
• Third-party testing organizations

Packaging & Delivery

Each machine is securely packed in a standard export plywood case with internal protective materials to prevent damage during transportation.

Included with the equipment:

• User manual
• Operation guide
• Quality inspection certificate
• Standard accessories

Frequently Asked Questions

What is the purpose of a structural silicone sealant compatibility test?

The test determines whether a structural silicone sealant can safely bond with specific construction materials without causing discoloration, adhesion loss, or material degradation.

Which materials can be tested?

Glass, aluminum, coated metal panels, stone, insulating glass components, composite panels, and other building materials commonly used in curtain wall systems.

Why is compatibility testing important?

Different substrates may react differently with silicone sealants. Compatibility testing helps prevent premature sealant failure and ensures the long-term durability of building façades.

Can the chamber be customized?

Yes. Chamber dimensions, temperature range, control system, and power supply can all be customized according to customer requirements.

Is this equipment suitable for laboratory use?

Yes. It is designed for professional laboratories, quality control departments, sealant manufacturers, and research institutions requiring accurate and repeatable compatibility testing.
