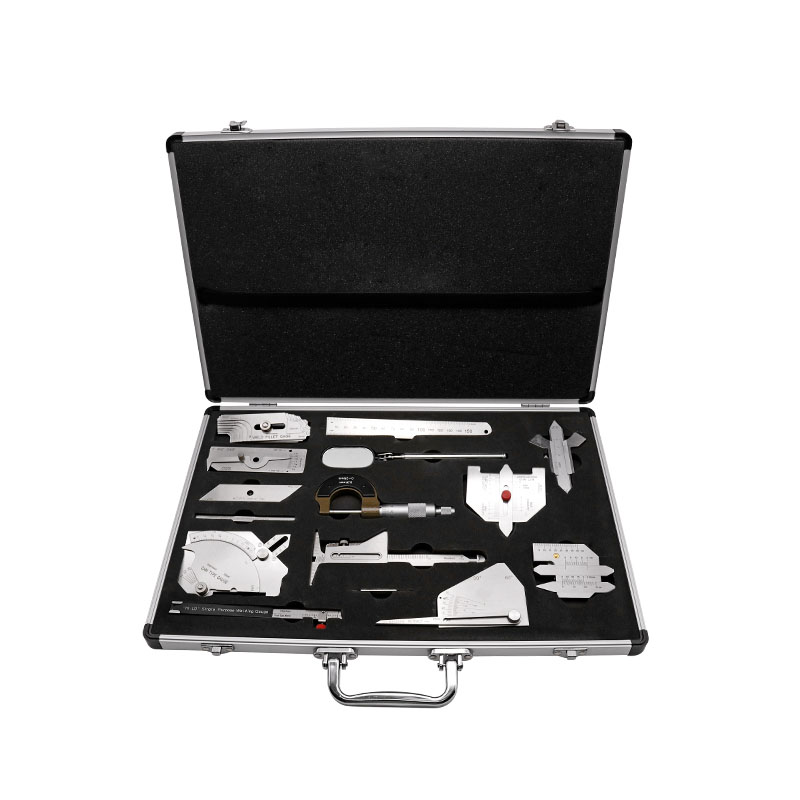

How to Use Fillet Weld Inspection Gauges to Improve Welding Quality

February 4, 2026 Shenshi2018 0 Comments

Fillet weld inspection gauges are important tools in welding work. They help check weld size and welding quality. Many industries use these tools, such as bridge building, pipeline construction, shipbuilding, and pressure vessel manufacturing. Proper use of weld gauges helps workers find problems early and keep structures safe.

Why Fillet Weld Inspection Gauges Are Important

In welding, correct size and shape are very important. They affect the strength and service life of the welded structure. Fillet weld inspection gauges help workers measure weld size, weld angle, and alignment.

Most weld gauges are made of stainless steel. They are strong and accurate. They can be used in workshops and also at job sites.

Step-by-Step Guide: How to Use Fillet Weld Inspection Gauges

1. Measure Weld Width and Reinforcement Height

First, workers need to check weld size. They use the main scale on the gauge to measure weld width on both sides.

Workers also need to measure weld reinforcement height. This means the height between the weld surface and the base metal. Proper weld height helps reduce stress and keeps weld strength stable.

This helps solve several problems:

It prevents weak weld strength
It prevents too much weld metal that may cause stress damage

2. Check Assembly Gap Before Welding

Before welding, workers must check the gap between two parts. A weld gauge helps measure this distance.

If the gap is too big, welding defects may happen. If the gap is too small, welding penetration may not be enough. So correct spacing is very important.

This helps solve problems like:

Prevents weld porosity and cracks
Helps get proper weld penetration

3. Detect Undercut and Misalignment

Undercut is a common welding defect. It usually appears along the weld edge. It can reduce the strength of the structure. Weld gauges help measure undercut depth and show if repair is needed.

The gauge also checks misalignment between welded parts. Too much misalignment can weaken the structure and cause failure during use.

This helps solve problems such as:

Reduces fatigue damage risk
Improves weld durability and load capacity

4. Inspect Weld Groove Angle

Correct groove angle is necessary for good welding results. Weld inspection gauges help measure the groove angle and check if it meets welding standards.

Good groove design helps avoid defects like slag inclusion and incomplete fusion.

This helps solve problems including:

Prevents incomplete penetration
Improves weld joint strength

5. Help Improve Welding Process

Weld inspection gauges also help improve welding work. Workers can use measurement data to adjust welding speed, voltage, and current. Then engineers can improve welding quality and increase production efficiency.

Industries That Use Weld Inspection Gauges

Fillet weld inspection gauges are widely used in many industries, including:

Bridge construction
Shipbuilding and marine engineering
Pressure vessel manufacturing
Pipeline installation
Heavy equipment manufacturing

These industries need strong welding quality to keep equipment safe and working for a long time.

Best Practices When Using Weld Inspection Gauges

Workers should follow these steps to get accurate results:

Clean the weld surface before measurement
Check that the gauge is calibrated
Measure several points along the weld
Compare results with welding standards
Record inspection data for quality control

Conclusion

Fillet weld inspection gauges play an important role in welding inspection. They help measure weld size, gap distance, defect depth, and groove angle. These tools help workers avoid structural failure and improve welding quality.

Today, safety requirements are becoming higher. Because of this, weld inspection tools are becoming necessary for manufacturers and construction companies.
