Specifications
Maximum test force: 2000kN;
Test machine level: level 1;
Relative error of test force indication: within ±1%
Test force measurement range: 1%-100% FS (the whole process is not divided)

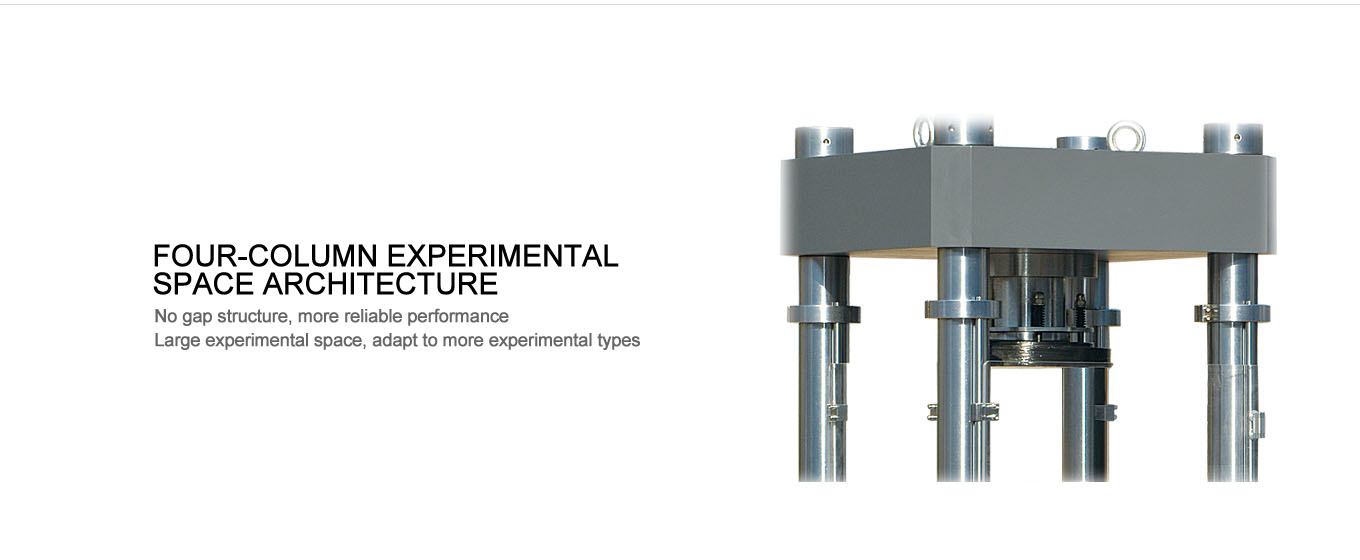

Host structure: 4-column frame
Distance between columns: 440mm × 440mm

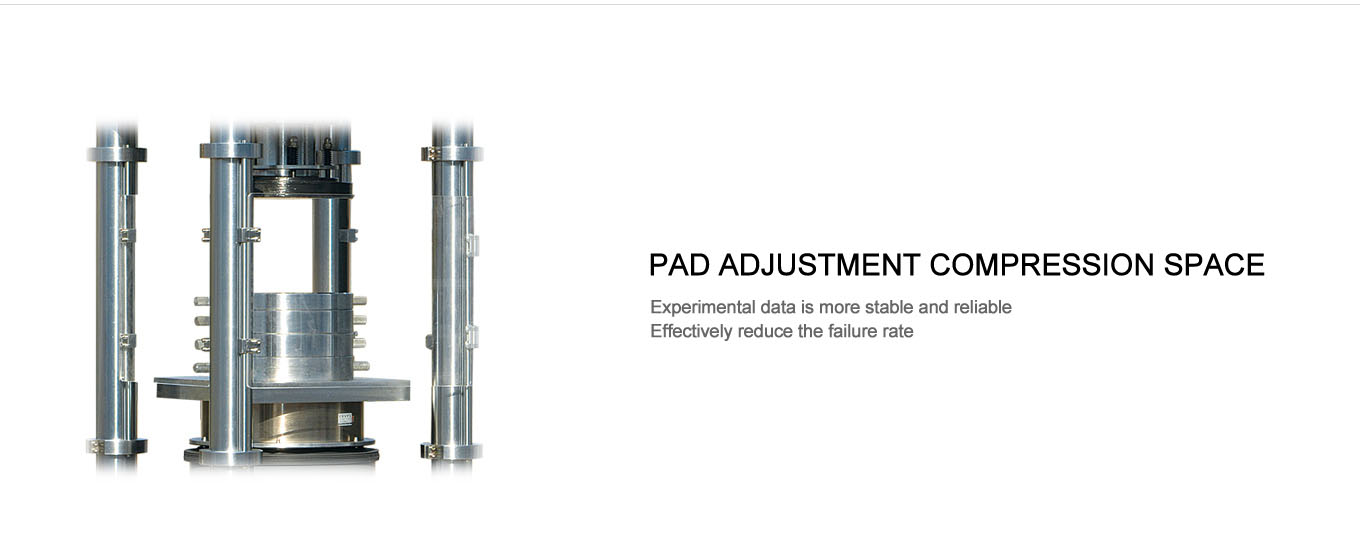

Compressed space: 400mm;
Piston stroke: 200 mm;
Piston displacement speed: 0-60mm/min;
Test force loading speed: 0.02%-2%FS/s;
Platen size: Φ300mm;
Piston movement direction control: two-way cylinder;
Main frame dimensions: 720 × 720 × 1800 mm;
Control cabinet dimensions: 800 × 600 × 1600 mm;
Machine power: 3.5kW;
Host weight: about 3000kg

SSD-2000 electro-hydraulic servo pressure testing machine is a high-precision material testing equipment that uses hydraulic power source drive, electro-hydraulic servo control technology, computer data acquisition and processing, and can realize closed-loop control and automatic detection. It is controlled by test host and oil source. (hydraulic power source), measurement and control system, test equipment consists of four parts, the maximum test force is 2000kN, and the test machine accuracy level is better than level 1.

The SSD-2000 electro-hydraulic servo pressure tester can set the loading rate according to the corresponding national standard and meet the standard loading rate control index. It can test the compressive and flexural strength of cement, concrete and other materials under the rated test force. It has load and time. And the dynamic display of the test curve and the timely control function and the maximum test force retention function.

The testing machine is a split structure of the main oil source; it is suitable for the compressive test of cement and concrete, and is equipped with appropriate fixtures and measuring devices to meet the tensile test, flexural test and static modulus test of concrete.
